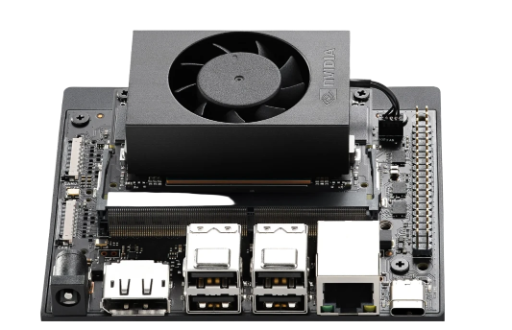

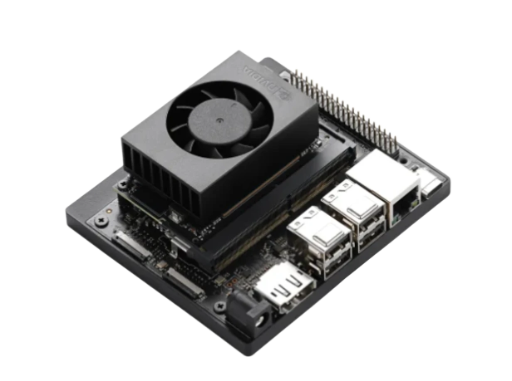

NVIDIA Jetson Orin Nano 8GB Super Developer Kit
NVIDIA Jetson Orin Nano Super Developer Kit
Empowering Next-Gen AI Robotics, Drones, and Smart Cameras
The NVIDIA Jetson Orin Nano Super Developer Kit sets a new benchmark for building AI-powered robots, smart drones, and intelligent cameras. It simplifies development with the Jetson Orin Nano series modules, offering a compact design, multiple connectors, and up to 67 TOPS of AI performance. With up to 80X the performance of Jetson Nano, it supports cutting-edge AI models, including transformers and advanced robotics algorithms.
Smallest Ai Computer
Why Choose the NVIDIA® Jetson Orin™ Nano Super Developer Kit?
This developer kit features the Jetson Orin Nano 8GB module and a reference carrier board that supports all Orin Nano and Orin NX modules. It provides an ideal platform for prototyping edge AI solutions.
Equipped with an Ampere GPU and a 6-core ARM CPU, it enables multiple AI application pipelines and high-performance inference. The carrier board includes diverse connectors, such as two MIPI CSI ports supporting 4-lane camera modules.
Jetson operates on the NVIDIA® AI software stack, offering specialized tools for robotics, vision AI, conversational AI, and more. It also supports various tools, add-ons, and software packages for enhanced functionality.
What’s Included?
Jetson Orin Nano™ 8GB module with heat sink and reference carrier board
DC Power Supply
802.11ac/abgn wireless network interface controller
Quick Start Guide
Technical Specifications
Jetson Orin Nano 8GB Module:
GPU: NVIDIA® Ampere architecture with 1024 CUDA cores and 32 Tensor cores
CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
Memory: 8GB 128-bit LPDDR5, 68GB/s bandwidth
Storage: Supports SD card slot and external NVM
Video Encode: 1080p30 (1-2 CPU cores)
Video Decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)
Power Consumption: 7W-15W
Reference Carrier Board:
Camera Interfaces: 2x MIPI CSI-2 22-pin camera connectors
PCIe Slots: M.2 Key M slot (x4 PCIe Gen3), M.2 Key M slot (x2 PCIe Gen3), M.2 Key E slot
USB Ports: 4x USB 3.2 Gen2 (Type-A), USB Type-C (UFP)
Networking: 1x GbE connector
Display Output: 1x DP 1.2 (+MST)
Additional I/O: 40-pin expansion header (UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, microSD slot, DC power jack
Dimensions: 100mm x 79mm x 21mm (including feet, carrier board, module, and thermal solution)
Transforming Embedded Systems Development
In today’s fast-evolving embedded systems landscape, the right tools are essential for performance and reliability. Whether you’re a hobbyist, engineer, or developer, top-tier development kits can streamline workflows, enhance productivity, and ensure project success.
Processor development tools are crucial for designing, testing, and optimizing embedded systems. These tools simplify coding, debugging, and fine-tuning designs, enabling faster development, lower costs, and improved product reliability. From complex embedded systems to simple SBC projects, having the right tools makes all the difference.
Explore our collection of development boards, kits, and evaluation tools today and take your projects to the next level.
Jetson AGX Orin Series
Jetson AGX Orin modules deliver up to 275 TOPS of AI performance with power configurations between 15W and 60W—offering up to 8X the performance of Jetson AGX Xavier™ in the same compact form factor. Available in 64GB, 32GB, and Industrial versions.
Jetson Orin NX Series
Jetson Orin NX modules deliver up to 157 TOPS of AI performance in the smallest Jetson form factor, with power options between 10W and 40W. Offering up to 5X the performance of Jetson AGX Xavier and 7.5X the performance of Jetson Xavier NX. Available in 16GB and 8GB versions.
Jetson Orin Nano Series
Jetson Orin Nano modules deliver up to 67 TOPS of AI performance in NVIDIA’s smallest form factor, with power options between 7W and 25W. Delivering up to 142X the performance of Jetson Nano, it is available in 8GB and 4GB versions.
Contact us for pricing
Tech Specs
Jetson AGX Orin series | Jetson Orin NX series | Jetson Orin Nano series | |||||||
Jetson AGX Orin Developer Kit | Jetson AGX Orin 64GB | Jetson AGX Orin Industrial | Jetson AGX Orin 32GB | Jetson Orin NX 16GB | Jetson Orin NX 8GB | Jetson Orin Nano Super Developer Kit | Jetson Orin Nano 8GB | Jetson Orin Nano 4GB | |
AI Performance | 275 TOPS | 248 TOPs | 200 TOPS | 157 TOPS | 117 TOPS | 67 TOPS | 67 TOPS | 34 TOPS | |
GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores | 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | ||||
GPU Max Frequency | 1.3 GHz | 1.2 GHz | 930 MHz | 1173MHz | 1173MHz | 1020MHz | 1020MHz | 1020MHz | |
CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU | ||||
CPU Max Frequency | 2.2 GHz | 2.0 GHz | 2.2 GHz | 2 GHz | 1.7 GHz | 1.7 GHz | 1.7 GHz | ||
2x NVDLA v2 | 1x NVDLA v2 | - | |||||||
DLA Max Frequency | 1.6 GHz | 1.4 GHz | 1.23 GHz | - | |||||
Vision Accelerator | 1x PVA v2 | - | |||||||
Safety Cluster Engine | - | - | - | ||||||
Memory | 64GB 256-bit LPDDR5 | 64GB 256-bit LPDDR5 (+ ECC) | 32GB 256-bit LPDDR5 | 16GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 4GB 64-bit LPDDR5 | |
Storage | 64GB eMMC 5.1 | - | - | - | |||||
Video Encode | 2x 4K60 (H.265) | 1x 4K60 (H.265) | 1x 4K60 (H.265) |
| |||||
Video Decode | 1x 8K30 (H.265) | 1x 8K30 (H.265) | 1x 8K30 (H.265) | 1x 4K60 (H.265) | |||||
CSI Camera | 16-lane MIPI CSI-2 connector | Up to 6 cameras (16 via virtual channels) | Up to 4 cameras (8 via virtual channels***) | 2x MIPI CSI-2 22-pin Camera Connectors | Up to 4 cameras (8 via virtual channels***) | ||||
PCIe* | x16 PCIe slot supporting x8 PCIe Gen4 | Up to 2 x8 + 1 x4 + 2 x1 | 1 x4 + 3 x1 | M.2 Key M slot with x4 PCIe Gen3 | 1 x4 + 3 x1 | ||||
USB* | USB Type-C connector: 2x USB 3.2 Gen2 | 3x USB 3.2 Gen2 (10 Gbps) | 3x USB 3.2 Gen2 (10 Gbps) | USB Type-A Connector: 4x USB 3.2 Gen2 | 3x USB 3.2 Gen2 (10 Gbps) | ||||
Networking* | RJ45 connector with up to 10 GbE | 1x GbE | 1x GbE | 1xGbE Connector | 1x GbE | ||||
Display | 1x DisplayPort 1.4a (+MST) connector | 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | 1x DisplayPort 1.2 (+MST) connector | 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4** | ||||
Other I/O | 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) | 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC & DSPK, GPIOs | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO) | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs | ||||
Power | 15W - 60W | 15W-75W | 15W - 40W | 10W - 15W - 25W - 40W | 10W - 15W - 25W - 40W | 7W - 15W - 25W | 7W - 15W - 25W | 7W - 10W - 25W | |
Mechanical | 110mm x 110mm x 71.65mm | 100mm x 87mm | 69.6mm x 45mm |
| 69.6mm x 45mm | ||||
